Bridge Cutter N.7000-1600

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1459651

• Place of Origin:

  Spain

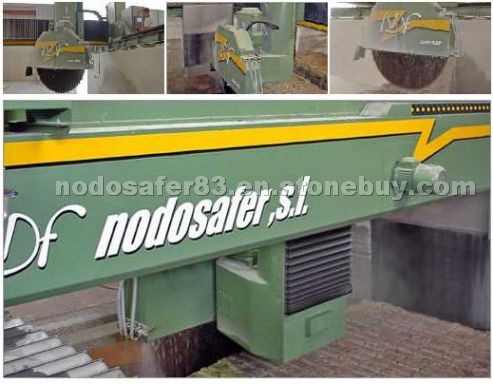

• BRIDGE CUTTER N.7000/1600
  The NDF-7000 cutter is a machine with great robustness and versatility, thanks to its swivel design for cutting and squaring of blocks supported directly on the ground without turning the table.
  Linear guides the movements of the head and bridge supported on steel beams.
  Productive, efficient and precise, with automatic positioning and speed control, variable speed features in all their movements.
  Terminal easy programming and installation for maximum performance for robot controloda.
  OPTIONS:
  Tilting head automatically 0 - 45 o
  Head-mounted 2-disc
  Fixed cutting table
  Runways 10 or 12 m
  Programmer for moldings
  Automatic lubrication
  Laser
  TECHNICAL
  N-7000/1600
  Disco 800-1600 mm min-max
  No. Max. used disk 1 - 2 (optional)
  Length 3700 mm cutting tool
  Bridge 6000 mm Displacement
  Offset. 1100 mm vertical head
  Speed ??offset 0 - 15 m / min
  Power 50 hp motor drives
  Pot. Lift motor 2 hp
  Pot. Offset motor. head 2 hp
  Pot. Offset motor. Bridge 2 CV
  Installed power 60 hp
  Voltage 380V 50Hz
